IR-remote

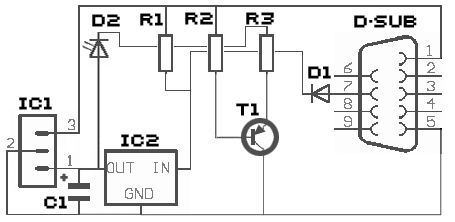

I've got all the schematics and components from

http://www.zux.nu/stolux/pim/hardvaran.html

 HÅRDVARAN
För att bygga denna mottagare exakt som jag så behöver man följande komponenter:
ID Antal Typ Beskrivning Art. Nr. i ELFA
IC1 1st ELIRM 8601 Avstämd IR-mottagare 75-303-89
IC2 1st 7805UC 5V spännings regulator TO-220 73-090-40
D1 1st 1N4148/Ph Switchdiod 70-005-57
D2 1st Lysdiod Grön 75-006-48
C1 1st Kondensator 100µF 16V Elektrolyt 67-010-80
T1 1st BC557A/Ph Småsignaltransistor PNP 71-056-20
R1 1st Motstånd 10K Ohm 60-106-15
R2 1st Motstånd 22K Ohm 60-106-56
R3 1st Motstånd 82 Ohm 60-103-67
D-Sub 1st D-Sub Hylsdon Polantal: 9 44-068-15






This is how it looks like when it's welded up. I've don an even

smaller one but that is mounted in my computer. This one I

mostly use for experimental use on other computers.

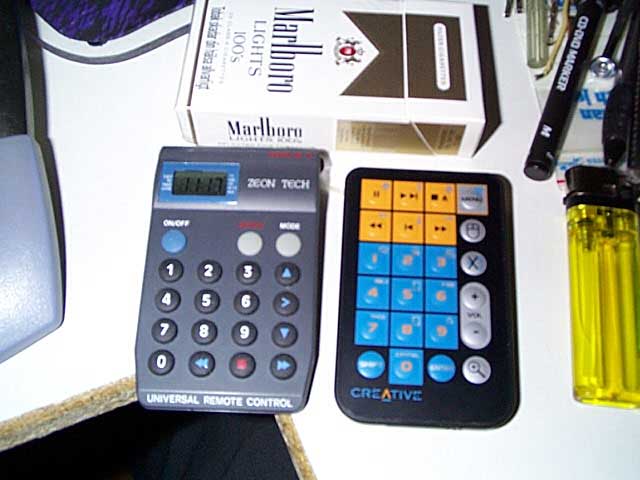

My small remote controls the left one which can control 17x5

different buttons. The other one is from an old Creative CD

reader which can control 20 buttons. You even need this

programs winlirc and girder



.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.
